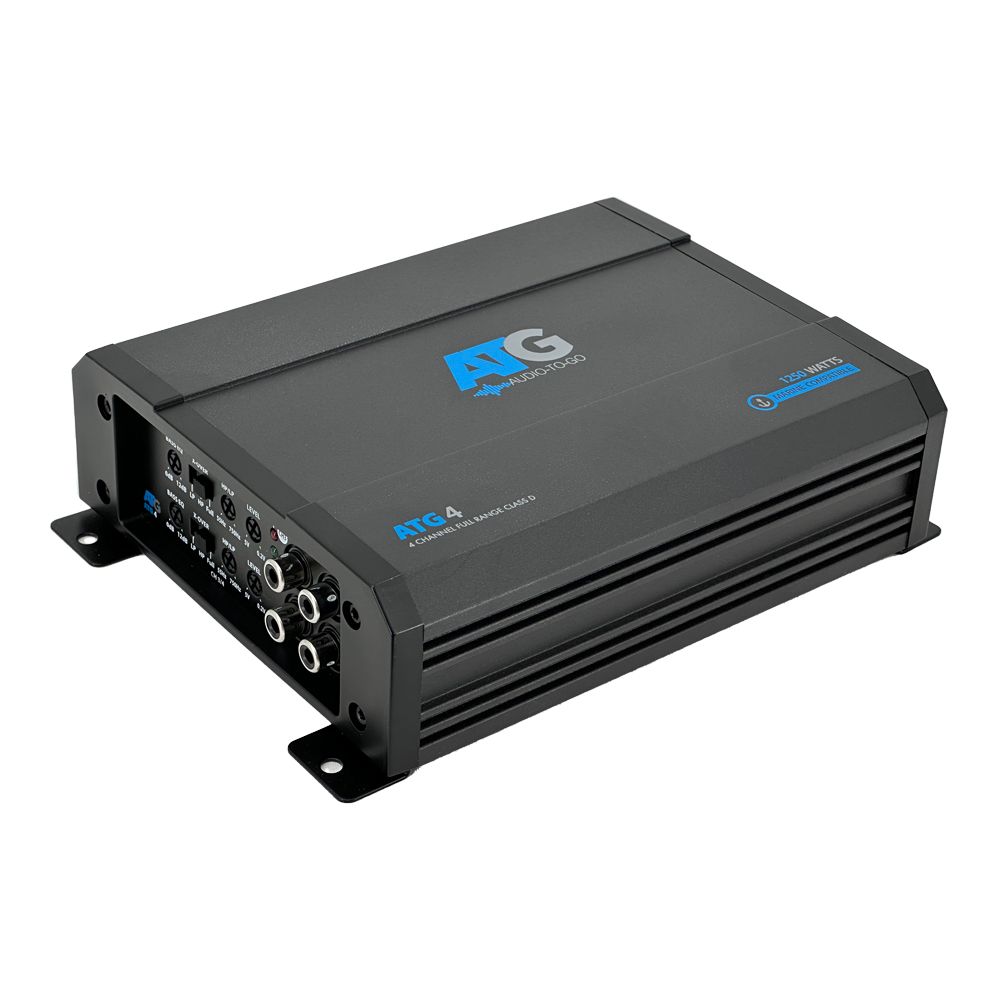

1000W Class D 4 Channel Full Range Mini Amplifier - Compact Power Amp for Car Audio, Home Theater & DJ Systems | High Performance Stereo Sound System

Product Description

Full Range Class D Amplifier

4 Channel Full Range Class D Technology
2-Ohms Stereo load Capability
Marine grade conformal coating on PCB
Audiophile Grade RCA connectors
Variable 12db High/Low-pass crossover filters
Bridgeable outputs @ 4-Ohms load
Double Sided Circuit tablet
Compatible with any 4/2-Ohms Loudspeaker
Output Power @ 14.4 VDC, 4-Ohms 4 x 125W
Output Power @ 14.4 VDC, 2-Ohms 4 x 250W
Output Power @ 14.4 VDC, Bridge 2 x 500W
Power Supply Input Voltage 12.0VDC to14.8VDC
TTHD (1kHz @ 4-Ohms): 0.04%
Bandwidth (-3 dB): 18Hz - 22KHz
Damping Factor (1k Hz @ 4-Ohms): 100
S/N ratio ( as weighted @ 1 Volt): 99db
Input Sensitivity: .20V - 5.0V RMS
Minimum Load Impedance: 2-Ohms
Input Pre in RCA
Channel 1-2 filter range: 55Hz - 750Hz
Channel 3-4 filter range: 55Hz - 750Hz
Variable Bass Boost: 45Hz @ 0 ~ 12dB
