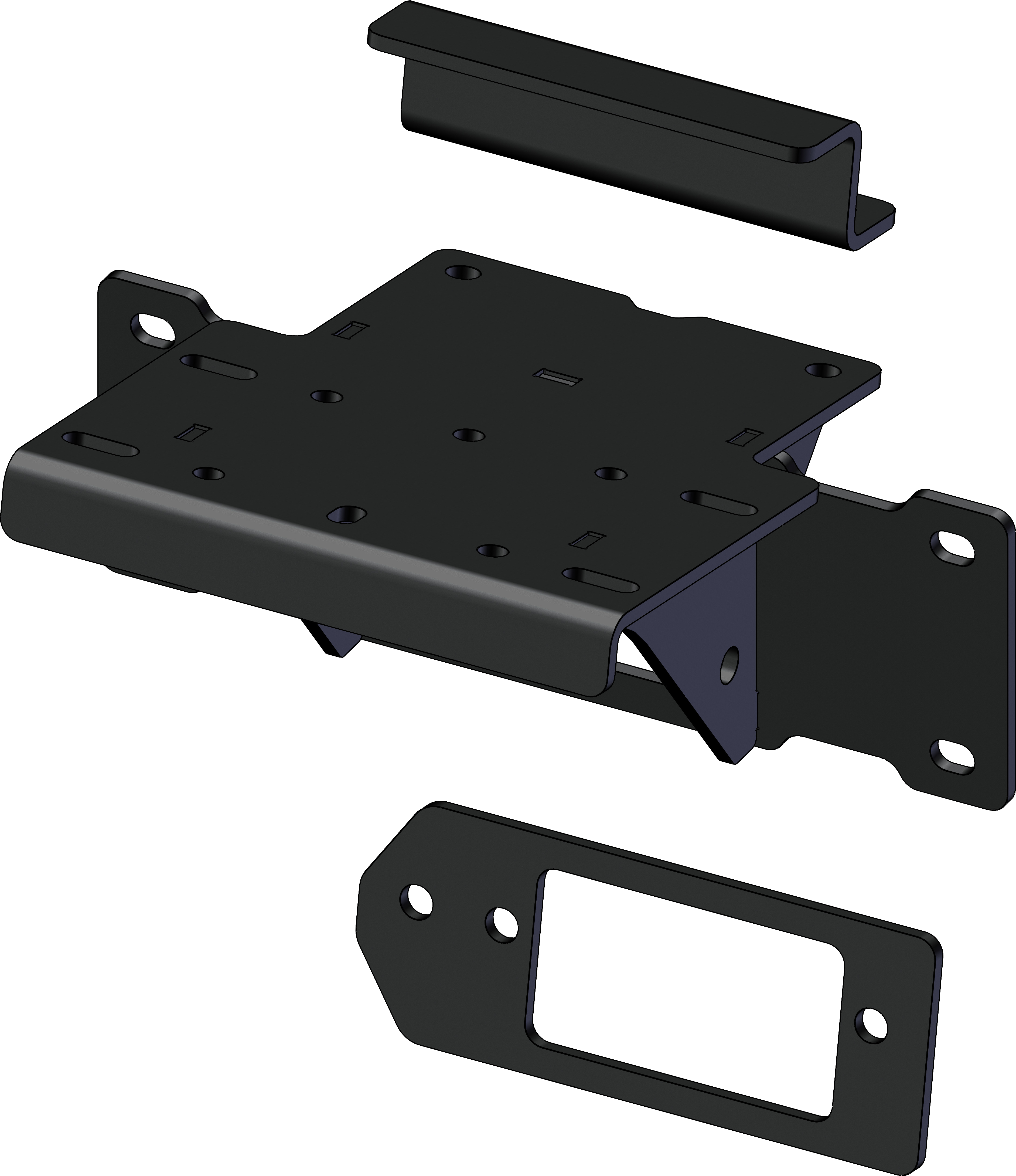

Kawasaki Ridge Winch Mount - Heavy Duty ATV Winch Bracket for Kawasaki Ridge UTV/ATV - Perfect for Off-Roading, Hunting & Farm Work

Product Description

Brand New "KFI" Winch Mount for the following Kawasaki UTV's:

NOTE A - Limited winch fitment. Winches that don't fit are listed below.

Below is a picture of the XR Bumper. If you have an XR model or an aftermarket bumper on your machine, this limited fitment will impact you.





NOTE "A" Will not work with the following winches:

• KFI: U45w-R2 / SE45w-R2 / AS-50wx
• SUPERWINCH: TERRA 45 / LT4000UTV
• SMITTYBUILT: XCR3.0 / XCR4.0
• SUPERATV: WN-4500 / WN-6000 / 4500-W-N / WIN 00-001 / WIN 00-012 (WIDE)
• MILEMARKER: PE5000 (WIDE)
• BRONCO: 2500 / 3500 (STD)
• BADLANDS: 2-HOLE WINCHES
• BADLANDS: WIDE WINCHES
• BADLANDS: Apex 5500 (short and long)
• CHAMPION: 2-HOLE WINCHES
• CHAMPION: WIDE WINCHES
• TRAKKER: KT2000 / KT4000(C)
• VENOM: 4500 / 5000 (WIDE)
• TRAVELLER: 4500 (WIDE)
• EAGLE: 2000LBS (2-HOLE)
• MASTERLOCK: 1500LB / 2955AT

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45-R2w / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: AS-50x / AS-50wx
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • Requires Standard fairlead bracket #.
• WARN: VRX 45 / VRX 45-S
  • Requires Wide fairlead bracket #.
• WARN:AXON 35 / AXON 35-S / AXON 45RC
  • Requires Standard fairlead bracket #.
• WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
  • Requires Wide fairlead bracket #.
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: RT40 / XT40
• WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
• WARN: Vantage 4000lbs / ProVantage 4500lbs
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500lbs #2955AT
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
• BADLAND: 2-Hole Winches
• BADLAND: Standard Winches
• BADLAND: WIDE Winches: (Click Here for Details)
• CHAMPION: 2-Hole Winches (Click Here for Details)
• CHAMPION: ATV 4-Hole Winches (Click Here for Details)
• CHAMPION:UTV 4-Hole Winches (Click Here for Details)
• CHAMPION: WIDE Winches: (Click Here for Details)
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT: XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00" x 4.875" bolt pattern mount-up
  • All with 3.00" x 6.600" bolt pattern mount-up
• Traveller: 1078311
• Traveller: 1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35

Specifications:

• 100% MADE IN USA.
• Constructed of 3/16” steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.
